Single Channel Video Slip Ring 300rpm For Lossless HD Video Transmission

  • 1
  • 2
  • 3

Brand Name : Panlink

Model Number : PSR-M6-HF01

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Lead Wire : RG316 coaxial cable

Torque : Max. 5gf.cm

Speed : 300rpm

Lifetime : 5 million revolutions

Name : Video Slip Ring

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

A single-channel slip ring designed for lossless HD video transmission in harsh environments

Features Applications

• 5 gf·cm torque—negligible load on drives

• High-speed pan/tilt and PTZ cameras

• 50-million-revolution life, 300 rpm, IP54 shock/dust proof

• Industrial robot vision systems

• Broadcast-grade, loss-free: precious-metal contacts + RG316

• Special-vehicle electro-optical masts
coax eliminate attenuation and EMI

Single Channel Video Slip Ring 300rpm For Lossless HD Video Transmission

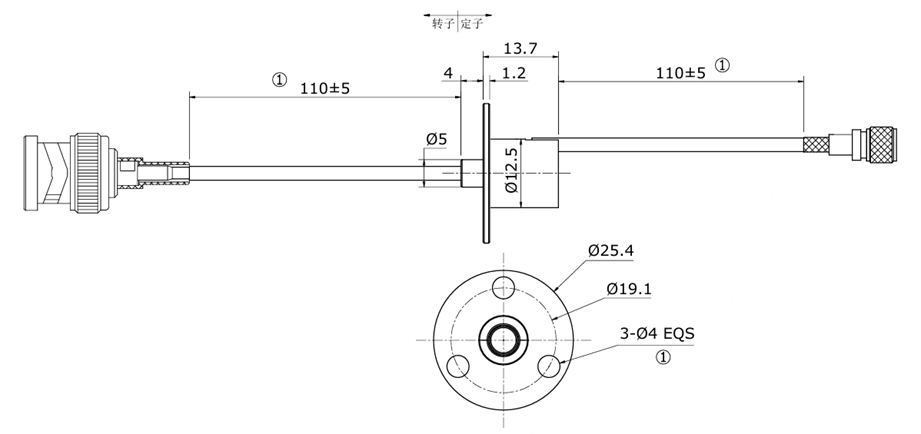

Model HD-SDI

OD x L

inch(mm)

 Circuits Voltage Total rings
PSR-M6-HF01 1 Channel RG-179(75Ω) HD-SDI

0.49″ x 0.54″

(12.5 x 13.7)

 1A 48VDC 1

Specifications
Insulation Resistance 20MΩ@200VDC
Electrical Noise Max. 20mΩ
Dielectric Strength 200VAC@50Hz
Torque Max. 5gf.cm
Speed 300rpm
Lifetime 5 million revolutions
Working Temperature -40℉ to +176℉(-40℃ to +80℃)
Storage Temperature -40℉ to +176℉(-40℃ to +80℃)
Relative Humidity 90%
Protection Level IP54
Contact Material Precious Metal
Housing Material Aluminum Alloy
Lead Wire RG316 coaxial cable

Product Tags:

Single Channel Video Slip Ring



Video Slip Ring 300rpm



Lossless HD Slip Ring


Quality Single Channel Video Slip Ring 300rpm For Lossless HD Video Transmission for sale
