Customized PCB Pancake Slip Ring Supporting Multi Channel Hybrid Transmission

  • 1
  • 2

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Brand Name : Panlink

Model Number : PSR-PP Series

Certification : ISO 9001: 2015, CE

Place of Origin : China

Name : PCB Pancake Slip Ring

Inner Diameter : 0~250mm (Customizable)

Outer Diameter : 20~300mm (Customizable)

Contact Material : Gold-Gold

Protection Level : IP00

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

Customizable PCB Type Pancake Slip Rings Supporting Multi-Channel Hybrid Transmission

PCB Type Pancake Slip Ring

PCB type pancake slip rings are constructed with a PCB-based ring and a matching brush block. They utilize the existing bearing system to achieve minimal installation height and offer a significant cost advantage in mass production.

These slip rings are ideal for power and signal transmission in mechanical systems with limited thickness requirements, such as rotating tables and seat positions. Panlink offers two standard series of PCB type units:

• PCB Type Pancake Slip Rings for Signal Transmission: Each ring is rated at 2A max, specifically designed for signal transfer or low-current applications. These units provide a smaller outer diameter and installation height.

• PCB Type Pancake Slip Rings for Power Transmission: Each ring is rated at 10A max and can transfer both power and signal. Rings can be designed on either the single side or double-sided of the PCB to achieve a thinner profile.

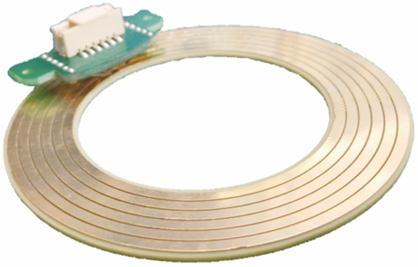

• PCB Type Pancake Slip Rings for Signal Transmission
• Gold plated PCB type ring Customized PCB Pancake Slip Ring Supporting Multi Channel Hybrid Transmission
• 0~48 ways
• Max speed 300RPM
• Max 2A per way
• Inner diameter 0~250mm
• Outer diameter 20~300mm
• Voltage 60VDC

Model ID(mm) OD(mm) Height(mm) Ways
PSR-PP20-4 20 41 5.5 4
PSR-PP30-4 30 51 5.5 4
PSR-PP50-6 50 80 5.5 6
PSR-PP70-12 70 127 5.5 12
PSR-PP100-12 100 157 5.5 12
PSR-PPAB-CD

AB

(customized)

 ID+3+way*4.5 5.5

CD

(customized)

Specification
Voltage Rating 60VDC
Current Rating 2A
Insulation Resistance 20MΩ @ 500VDC
Electric Noise 20mΩ
Dielectric Strength 500VAC @ 50Hz
Contact Material Gold-Gold
Operating Speed 200rpm
Working Temperature -30℃~+80℃
Torque ＜2 g.cm/ way
Rotar/ Stator Connection Customized(leads or connector)
Protection Level IP00

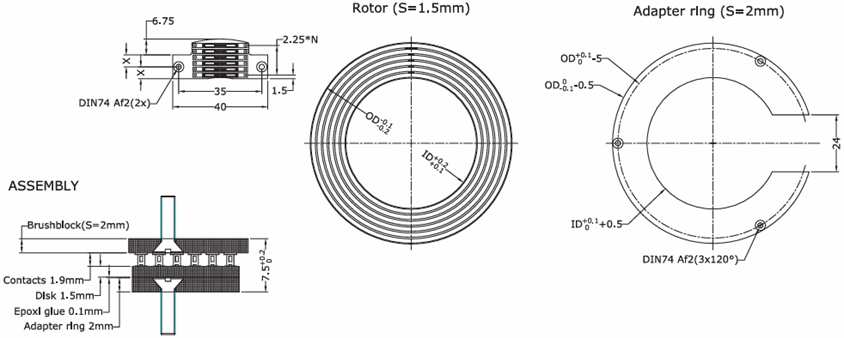

Dimensions

Customized PCB Pancake Slip Ring Supporting Multi Channel Hybrid Transmission

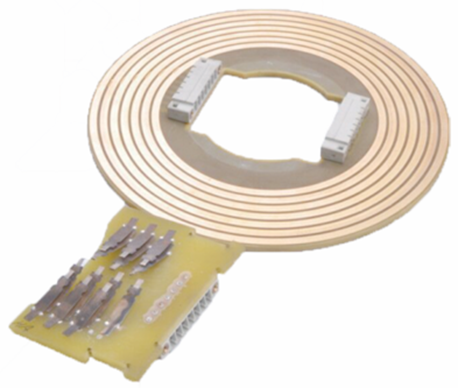

• PCB Type Pancake Slip Rings for Power Transmission
• 0~48 ways Customized PCB Pancake Slip Ring Supporting Multi Channel Hybrid Transmission
• Max speed 200RPM
• Max 10A per way
• Inner diameter 0~250mm
• Outer diameter 20~300mm
• Voltage 240VAC
• Transfer both signal and power
• Double-sided rings design available for thinner
thickness

Model ID(mm) OD(mm) Height(mm) Ways Option
PSR-PP20-4-S 20 82 9.2 4 Single side
PSR-PP20-4-D 66 15.2 Double side
PSR-PP30-4-S 30 92 9.2 4 Single side
PSR-PP30-4-D 76 15.2 Double side
PSR-PP50-6-S 50 128 9.2 6 Single side
PSR-PP50-6-D 104 15.2 Double side
PSR-PP70-12-S 70 196 9.2 12 Single side
PSR-PP70-12-D 148 15.2 Double side
PSR-PP100-12-S 100 226 9.2 12 Single side
PSR-PP100-12-D 178 15.2 Double side
PSR-PPAB-CD-S customized ID+30+ways*8 9.2 customized Single side
PSR-PPAB-CD-D ID+30+ways*4 15.2 Double side

Specification
Voltage Rating 240VDC
Current Rating 10A
Insulation Resistance 1000MΩ @ 500VDC
Electric Noise 20mΩ
Dielectric Strength 500VAC @ 50Hz
Contact Material Gold-Gold
Operating Speed 200rpm
Working Temperature -30℃~+80℃
Torque ＜2 g.cm/ way
Rotar/ Stator Connection Customized(leads or connector)
Protection Level IP00

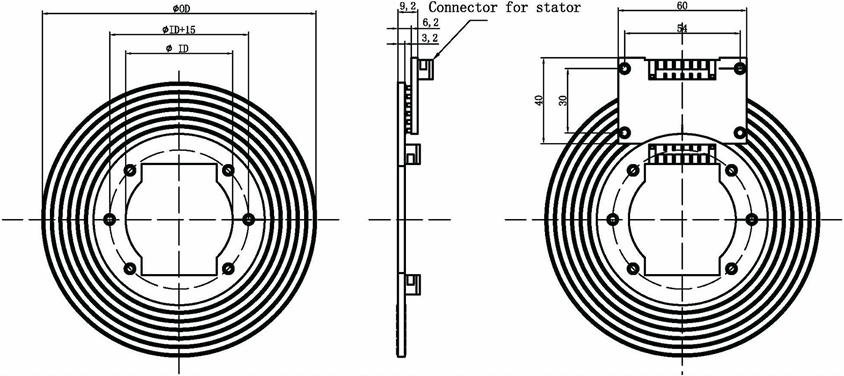

Single Side Contact

Customized PCB Pancake Slip Ring Supporting Multi Channel Hybrid Transmission

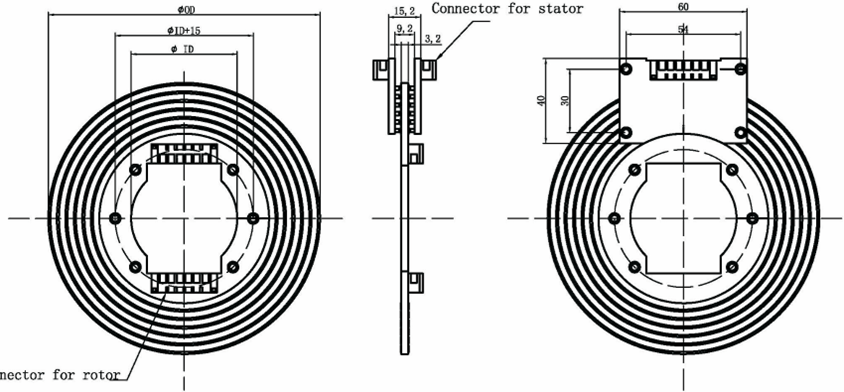

Double Side Contact

Customized PCB Pancake Slip Ring Supporting Multi Channel Hybrid Transmission
